How To Lubricate The Rear Drive Splines

Post #1 by sodbuster » Wed Apr 22, 2009 11:52 pm

You need to grease your drive splines each time you change your rear tire. This is true for all shaft drive bikes, regardless of brand. The drive splines get surprisingly hot. Additionally, there's a lot of pressure on the splines and a lot of back and forth sliding motion. Any liquid type of grease will quickly be squeezed out of the splines, and leave you with no protection.

The ONLY grease that should be used on the spline is genuine Moly 60 paste (60% molybdenum disulfide). A lot of greases now say "Moly" on the container, but dont come close to the Moly 60 paste. Moly 60 is a dry lubricant which bonds to the metal surfaces, offering lubrication properties even when the parts have squeezed everything liquid out. Part number for Honda Moly 60 Paste in a 3 oz. tube is 08734-0001

(UPDATE: Reports from the Valkyrie Riders website VRCC are saying that MOLY 60 is not holding up and you'll get rust over time. I recommend using GuardDog 525. It is 30% moly and has been tested and designed for motorcycle use. http://www.guarddogmolylubricants.com/


With your rear wheel off the bike, the drive splines will be exposed. Clean off any existing grease with whatever means available (Rags, Q-Tips, Paper towels, etc). You'll likely need some solvent like Kerosene or Gasoline to get them clean (I used lacquer thinner). You want the surfaces to be CLEAN & DRY prior to applying the paste. Also, before you remove the wheel side spline from the wheel, scribe (or use a magic marker) it's orientation so it goes back in the same holes.

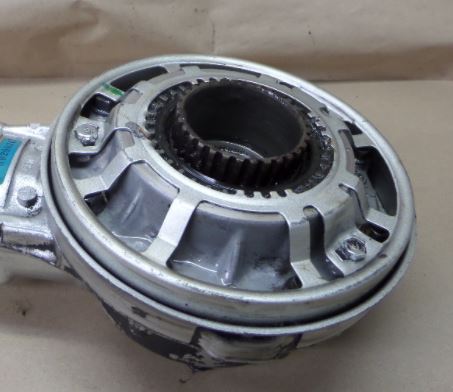

The drive side spline has a splined gear that extends outward, and rotates as the driveshaft rotates.

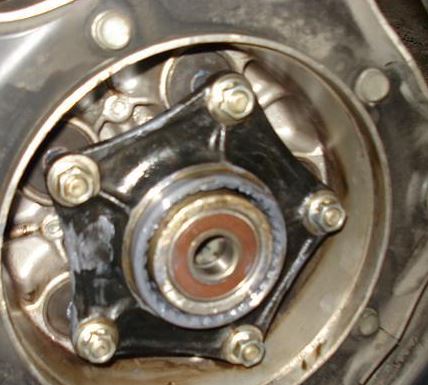

The wheel side spline has a splined gear that accepts the drive side spline.

Now put Moly-60 paste on the exposed splines. The idea here is to more or less paint the splines - you're not looking for a large volume of grease, like you would use on a wheel bearing. It's helpful to use a clean solder flux brush to spread the grease.



Coat the sliding pins on the wheel side spline as well.

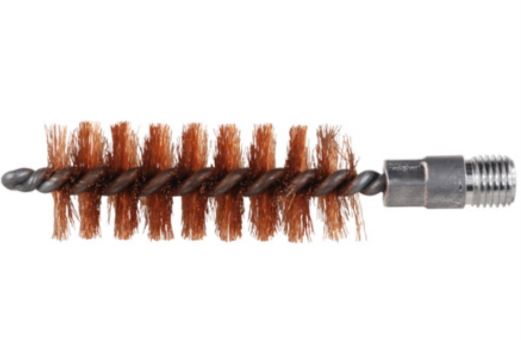

Before assembling the wheel side spline, clean out the sliding pin bores of the wheel. A 20 ga. gun cleaning brush in a drill works good for this.

Now, coat the wheel hub and o-ring with some Moly 60 and assemble the wheel side spline to the wheel.

That's it. Now assemble the wheel and drive unit to the bike. While you're at it now would be a good time to change the gear drive oil too.
