Water pump leak. Why and how.

Post #1 by octane » Mon Jul 02, 2007 2:07 am

Oil leaking from pump weep hole ?
Water leaking from pump leak hole ?

Why ?...how does it happen ?



Oil can find it's way to the weep-hole this way:

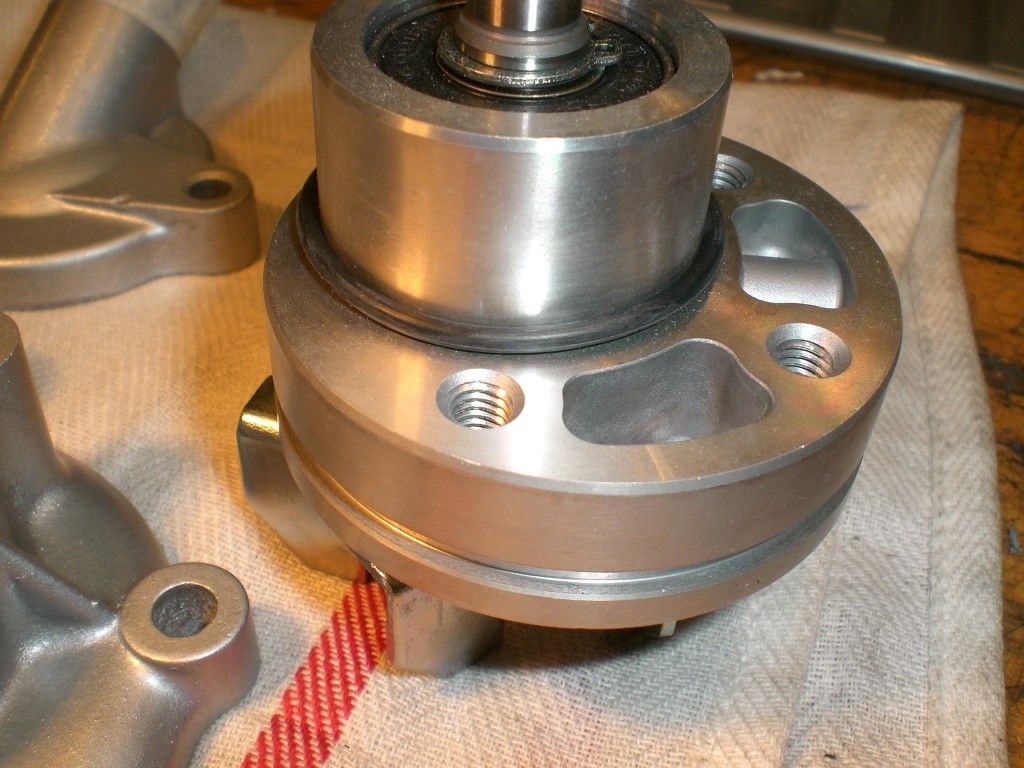

This is the pump assembly see from the engine/OIL side:
..the only thing that keeps the oil out are
the aluminum washers.

If they are defective (or the bolts not tightened sufficiently)
the oil will pass through the holes for the bolts, (3 holes on pic)
(there's plenty of room around the bolts for that)
and into the the where the pump sits, and out the weep hole
(that's the hole on the side of the 'cylinder' on the pic)


Schematically it goes like this:
Green stuff is the oil
Red lines is the weep hole

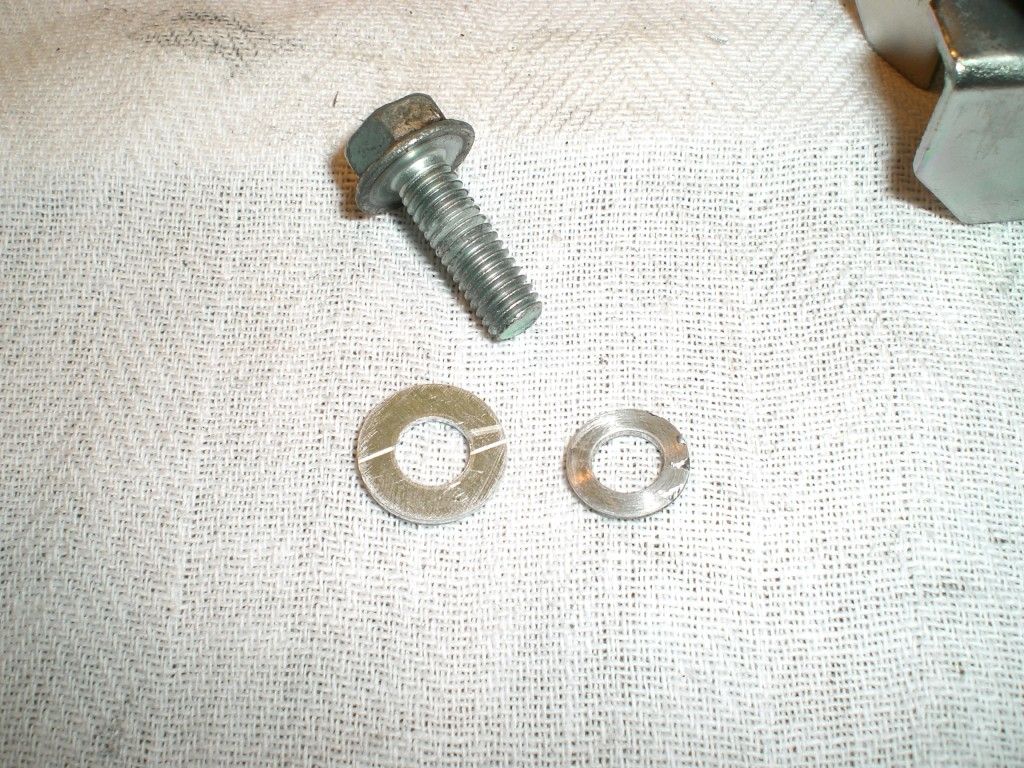

Strangely the washers in the rebuild set are not to the same
dimensions as the originals.
The hole is a bit larger than 6.5mm
and originals has a hole a bit smaller than 6.5mm
The outer diameter is bigger on the ones from the rebuild set
It's the original one on the right:


..or oil could enter
IF it's somehow able to pass this O-ring on the pump:

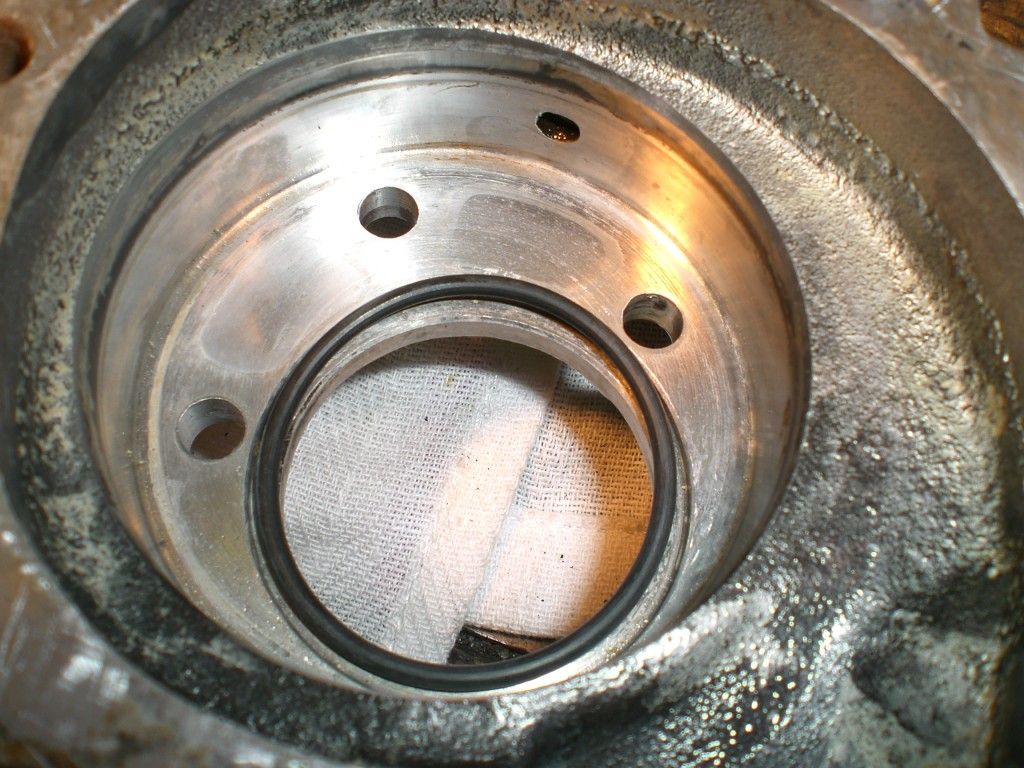

witch sits like this,
see from inside the pump-body (shown without the pump installed)


and schematically it goes like this:
The O-ring is marked with a yellow dot.

Be sure to use the right O-ring.
Dimensions 37.2 x 2.3 mm



On the other hand water can only enter if it's
somehow able to pass the big O-ring (56 x 2.4mm)

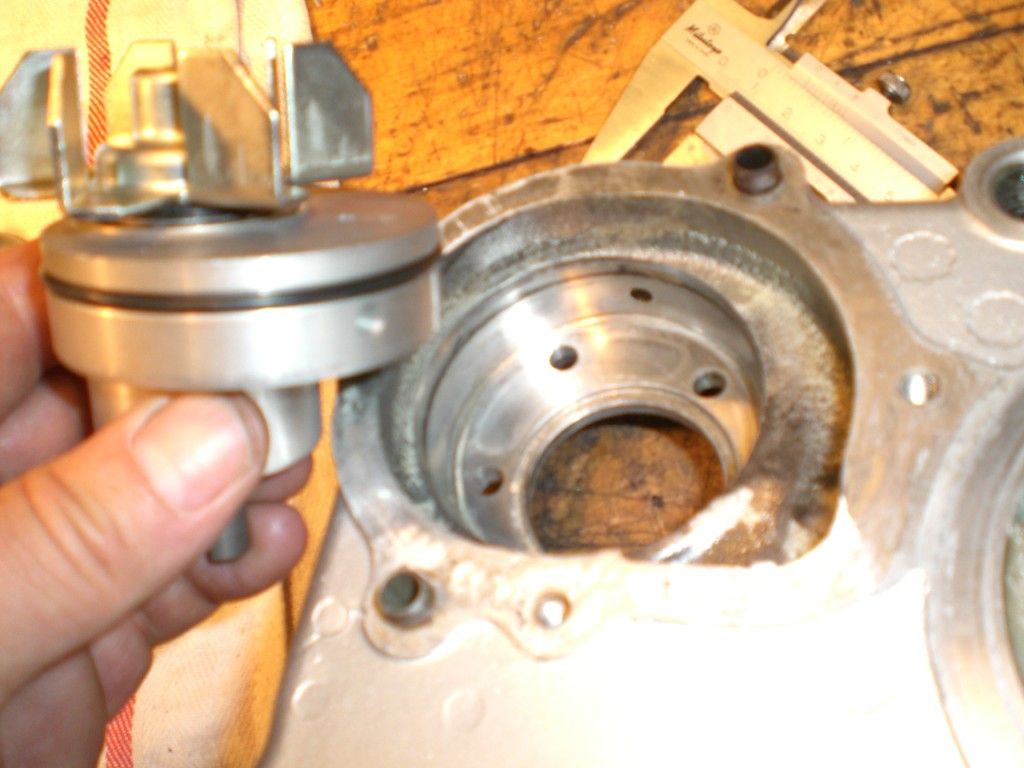

Seen here on the pump:

and it would go like this:
Blue stuff is water.
O-ring marked with a yellow dot.


Throughout all this I take it that the pump itself
is fresh and new and not to blame for the weeping.

if the pump (the pump seals rather) were to blame it would look like this
Yellow lines: internal 'weep-hole' inside the pump
Red lines: weep hole
Blue stuff: water
Green stuff: oil

and all you can do is to replace the pump.

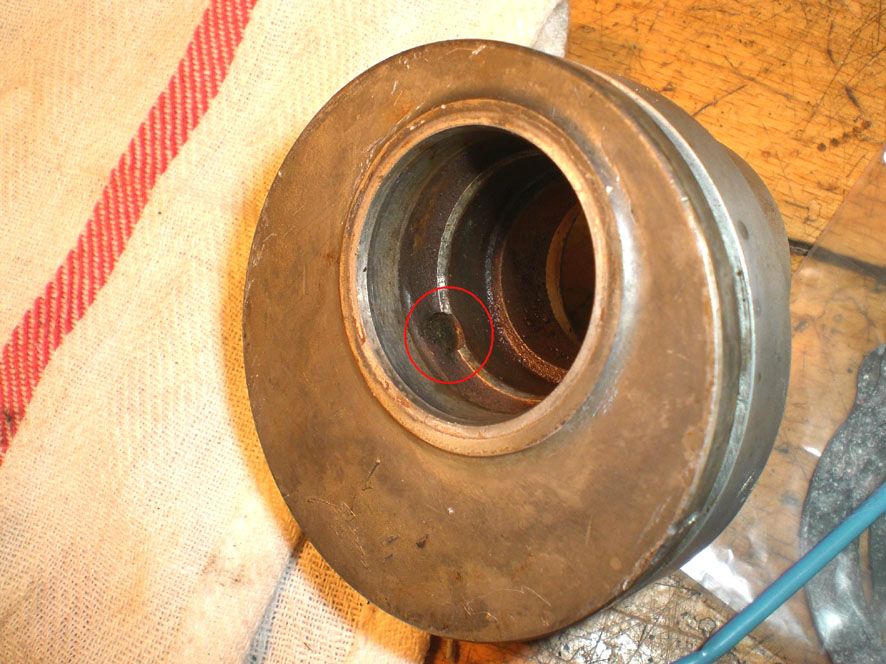

The internal weep hole inside the pump
starts from here (red ring)
Da' Supercharged Bulldog


"A designer knows he has achieved perfection
not when there is nothing left to add
but when there is nothing left to take away"

Antoine de Saint-Exupery

User avatar
RAT
Photo Gallery Admin
Photo Gallery Admin
Posts: 11109
Joined: Fri Oct 21, 2005 9:59 pm
My Album: http://www.ngwclub.com/gallery/v/wingmans/rat/
Location: TORONTO, CANADA

Thanks Lars

Post #2 by RAT » Mon Jul 02, 2007 11:07 am

Just followed your step by step to fix the Fat Rat.
With long distance help from Darwin (RR) and Frenchy (Susan) :twisted:

Thanks for the help all of you.

And Oldewing too of course.

Gord (I did do a BIT myself) Jones :P
"I'd rather Ride than Shine"
'84 GL 1200 Standard 'R2B2' (Rat To Be Two)
Team 898, Team LTD 993 and team '76 R2B3
My Original 'RAT' was an '82 CB900/1100F

User avatar
Whiskerfish
President
President
Posts: 29054
Joined: Thu Feb 16, 2006 9:34 pm
My Album: http://www.ngwclub.com/gallery/v/wingmans/whiskerfish/
Location: Norfolk Va

Post #3 by Whiskerfish » Mon Jul 16, 2007 10:18 pm

Octane is there a torque value for the 3 bolts with the alum washers?? I could not find one so I used 80 inch lbs??
Steve
The Wounds of Honor are self inflicted (Last Knights)
1978/9 Arthur Fulmer Dressed Road bike
1975 Naked Noisy and Nasty in town bike
and a whole garage full of possibilities!!

Psst. oh and by the way CHANGE YOUR BELTS!!!!

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #4 by octane » Tue Jul 17, 2007 5:10 am

Hi Steve. No I can't find any.
Strange ! ...Honda is usually very meticulous telling
torque values.

(They any state
6 mm case bolts 87 to 122 in-lb
8 mm case bolts 157 to 191 in-lb)

Donno; them being 6mm, I guess 80 or a bit more
sounds right.

User avatar
Whiskerfish
President
President
Posts: 29054
Joined: Thu Feb 16, 2006 9:34 pm
My Album: http://www.ngwclub.com/gallery/v/wingmans/whiskerfish/
Location: Norfolk Va

Post #5 by Whiskerfish » Tue Jul 17, 2007 6:58 am

The case bolts are what I based the 80 guess on. Not knowing the material composition I figured a bit lower would be ok. I know those washers are very soft and it should not take much to make them seal. I am going out to install it shortly so I will think about it a bit more after my coffee and may bump it up to 90.

Thanks for the thoughts and response.

Steve
The Wounds of Honor are self inflicted (Last Knights)
1978/9 Arthur Fulmer Dressed Road bike
1975 Naked Noisy and Nasty in town bike
and a whole garage full of possibilities!!

Psst. oh and by the way CHANGE YOUR BELTS!!!!

User avatar
heraldhamster
Honored Life Member
Honored Life Member
Posts: 4148
Joined: Wed Jun 28, 2006 2:52 pm
Location: up by the Canadian border in WA state

Post #6 by heraldhamster » Sun Mar 30, 2008 9:40 pm

hey, hey.

this all makes good sense to me. thanks again, octane.

my current problem is something else. I gotta start a new thread.
sorta bulldogged custom 1978 GL1000 - "geekster" - daily rider
full Vetter dress 1979 GL1000 - "Barge" - daily rider (currently down)
1978 for $100 - project in worx
1978 from a previous member here - taking up space
my original '79 bought in '91 - replacing engine

A gentleman is one who puts more into the world than he takes out. ~ George Bernard Shaw

A competent and self-confident person is incapable of jealousy in anything. Jealousy is invariably a symptom of neurotic insecurity. ~ Robert A. Heinlein

The good thing about science is that it's true whether or not you believe in it. ~ Neil deGrasse Tyson

User avatar
LakerV4
Cast Iron Member
Cast Iron Member
Posts: 77
Joined: Sat May 17, 2008 9:21 pm
Location: Wisconsin

Post #7 by LakerV4 » Sun May 25, 2008 11:34 pm

Is the reseal kit worth the effort or should a new pump be bought?
1976 Hot wing

User avatar
Cookie
Honored Life Member
Honored Life Member
Posts: 15821
Joined: Thu Oct 25, 2007 11:37 pm
RIP: 1950-2011
Location: San Mateo, CA

Post #8 by Cookie » Sun May 25, 2008 11:44 pm

There will be some debate on this but my opinion is that it is 30 years old.
Even with low mileage it is still 30 years old. This came up with me on fuel pumps as I have a few wing owning friends around here and folks on the board also echoed that fuel pumps rarely go bad.
I've had four out of four that are defective. I just ordered a new one from Frenchy as I am personally tired of 30 year old fuel pumps.
M water pump just gets the chance to seep once.
Enjoy life,
Cookie


A guy with two sidecars can't be all bad.
Owner of 4.4 76s and one lone 75 Wings (does a spare engine make .2?)

User avatar
Whiskerfish
President
President
Posts: 29054
Joined: Thu Feb 16, 2006 9:34 pm
My Album: http://www.ngwclub.com/gallery/v/wingmans/whiskerfish/
Location: Norfolk Va

Post #9 by Whiskerfish » Mon May 26, 2008 6:59 am

LakerV4 wrote:Is the reseal kit worth the effort or should a new pump be bought?


If you take off the housing that the lower hose attaches to you can reach in and get your fingers on the pump fins. Try wiggling it. If there is more than a hair's worth of movement order a new pump.
The Wounds of Honor are self inflicted (Last Knights)
1978/9 Arthur Fulmer Dressed Road bike
1975 Naked Noisy and Nasty in town bike
and a whole garage full of possibilities!!

Psst. oh and by the way CHANGE YOUR BELTS!!!!

User avatar
LakerV4
Cast Iron Member
Cast Iron Member
Posts: 77
Joined: Sat May 17, 2008 9:21 pm
Location: Wisconsin

Post #10 by LakerV4 » Tue May 27, 2008 10:55 pm

Right, If the bearings are good then new seals should work..
otherwise a new one is pretty cheap compaired to a hurt motor. :-? :)
1976 Hot wing

Howard Halasz
Lead Member
Lead Member
Posts: 8
Joined: Fri Sep 14, 2007 12:09 pm
Location: Houston, Texas

Coolant leak

Post #11 by Howard Halasz » Sun Jul 13, 2008 11:26 am

Thanks for the link and advice, Randakk. My '77 Wing "Mirandy" was stored for about 26 years before I brought it back to life. "Mirandy" still has the original pump with the bakelite impeller. I'll replace it with the new metal impeller pump when the heat wave here in Houston eases up a bit. We'll see you again at the 2009 Randakks Customer Appreciation Rally.

Howard
Keep doing what you're doing and you'll keep getting what you're getting.

User avatar
LakerV4
Cast Iron Member
Cast Iron Member
Posts: 77
Joined: Sat May 17, 2008 9:21 pm
Location: Wisconsin

Post #12 by LakerV4 » Sun Jul 13, 2008 2:51 pm

I have taken my pump out and upon Physical inspection my assessment is.
Their should be NO detectable movement in the bearings of the pump shaft.
If any movement is present then a new pump will need to be installed. If the bearings are solid then new seals will do the job nicely as long as care is taken during the instillation.
1976 Hot wing

User avatar
Q
Titanium Member
Titanium Member
Posts: 380
Joined: Wed Feb 06, 2008 9:27 pm
Location: Bend, Oregon

Post #13 by Q » Sun Jul 13, 2008 9:16 pm

While replacing the hoses on my 79 I discovered that I could wiggle the water pump impeller side to side close to 1/4 inch. The bearings were toast. Took out the old pump and pressed it apart with a vise and some sockets. Bought a couple bearings at the local bearing supply shop and pressed it back together using the original ceramic seal. Put it back in with a front cover gasket/O ring set. Works great and I saved a bunch of money by not buying a new pump.

Q
QQQ

User avatar
backyardbob
High Mileage Guru
Posts: 765
Joined: Sat Feb 09, 2008 2:30 pm
Location: madoc, ontario

Post #14 by backyardbob » Sat Aug 16, 2008 9:45 am

I replaced the bearings on an old (stored for 19 years) pump, still using the original seal, about 3 years ago, so far so good.
i finally made it past the junkyard dogs!!

User avatar
6adan
Silver Member
Silver Member
Posts: 670
Joined: Thu Dec 27, 2007 9:14 am
Location: Florence,Alabama

Post #15 by 6adan » Tue Nov 25, 2008 11:43 am

Octane, from your drawing it looks like the only thing that stops the oil is the seal in the bearings. Is this correct?
Dannie
79 GL1000,75 GL1000,76 GL1000 LTD,70 CB750k JDM, 81 GL1100 I,another 76 LTD bad shape,and several more for parts.
