I had originally routed the cable from the starter up through the side of the engine and up to the solenoid.

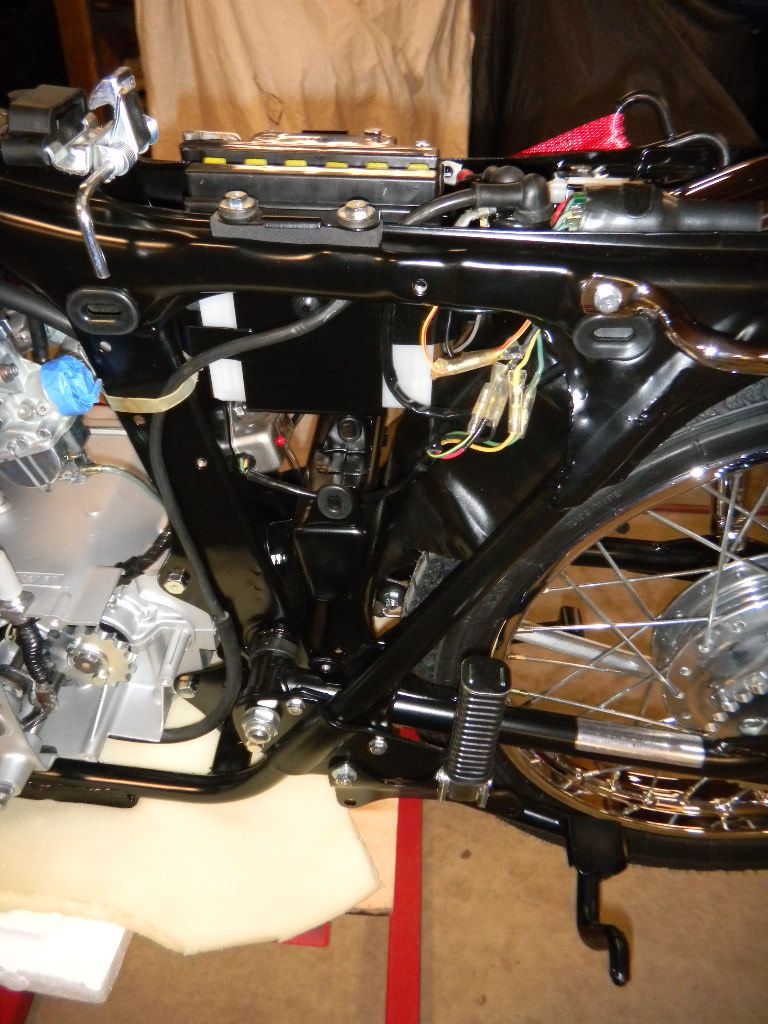

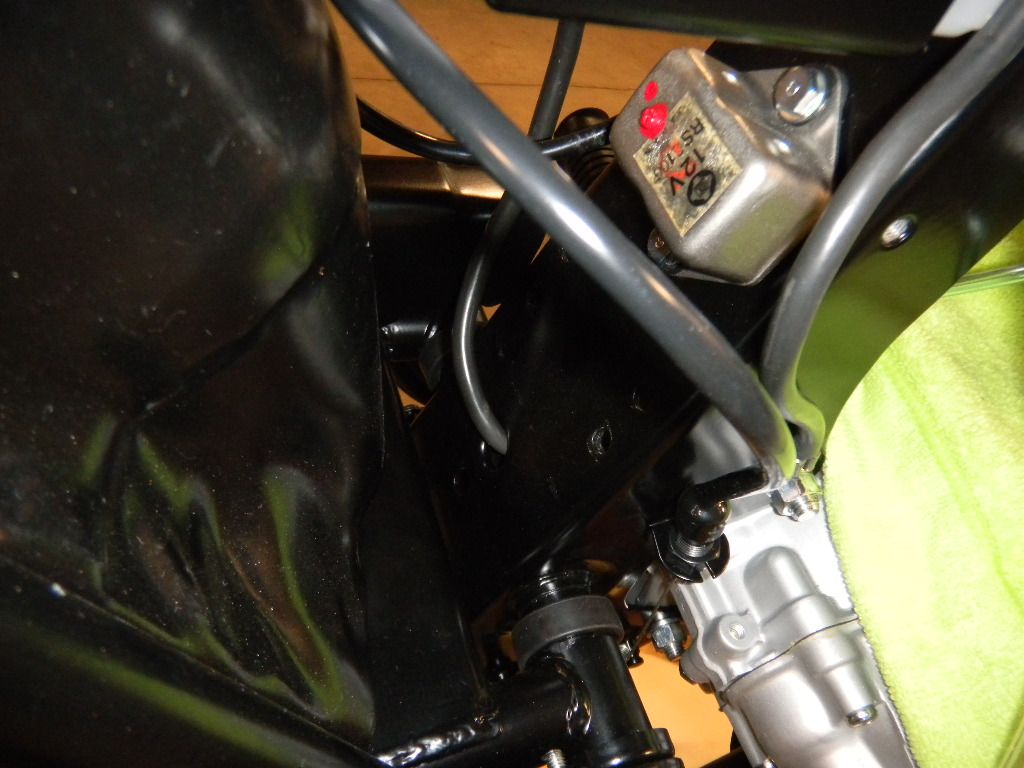

Didn't look right so I went on a photo hunt to see if I had one that showed the routing before dis-assembly. Got lucky and found a couple that I could magnify. Ends up the correct route is behind the engine, then up through a hole in the center frame member (tool box removed)


Shot from the other side

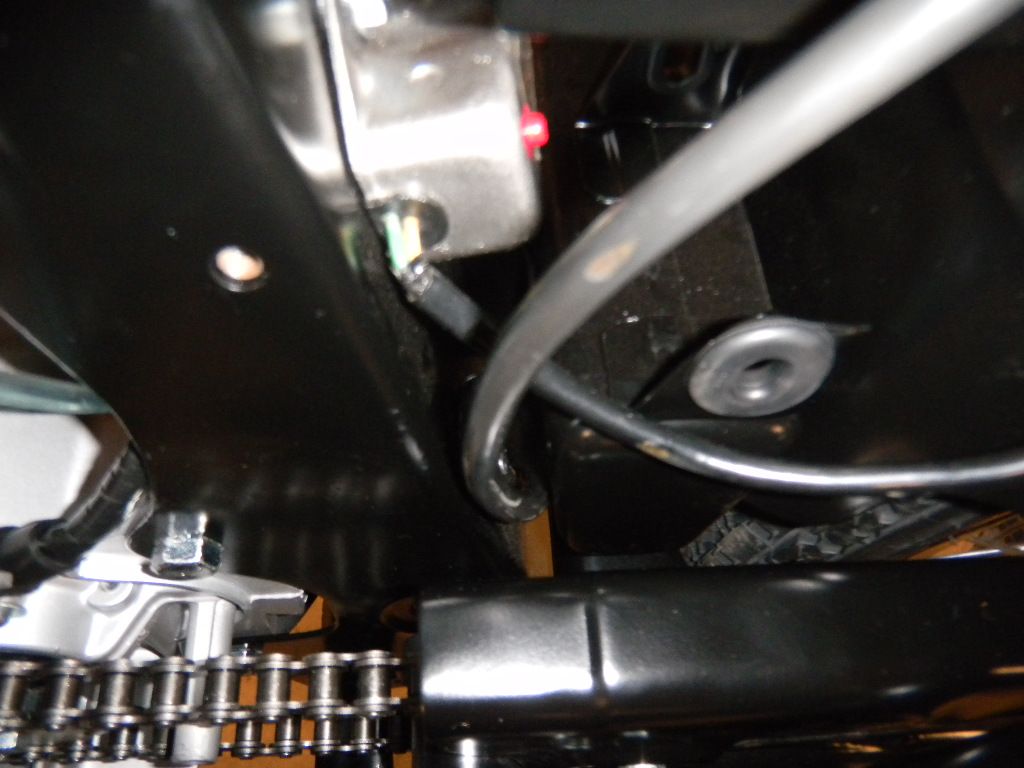

View from underneath


Tool box re-installed. The two bolts took a while to get in.

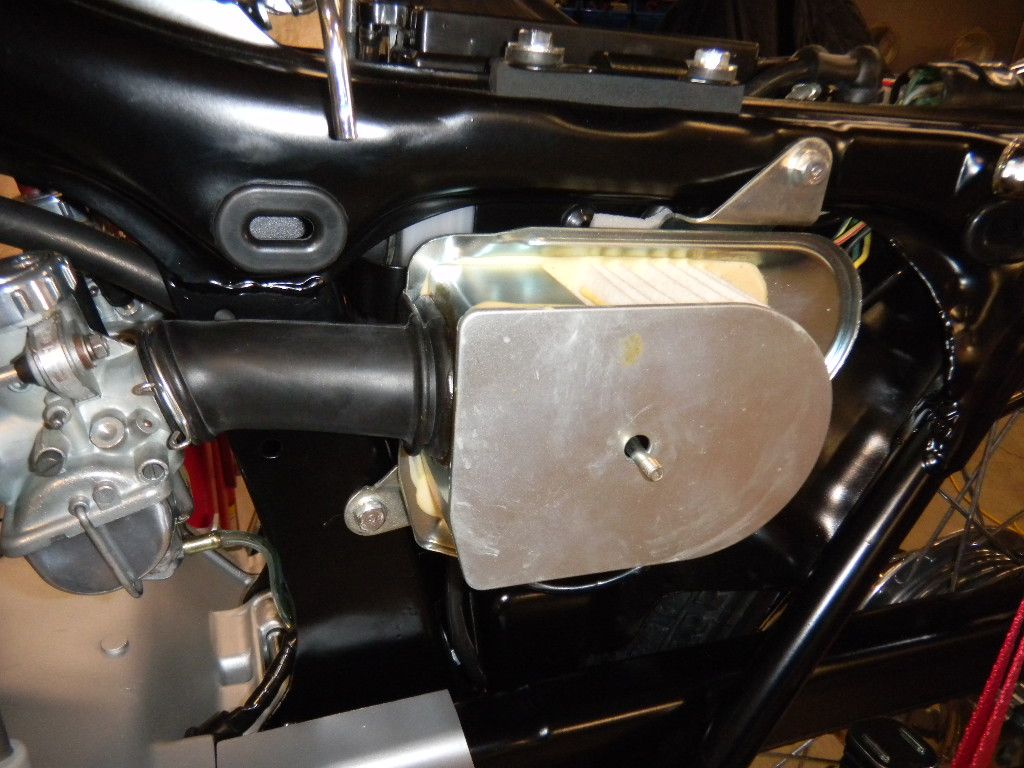

Left air filter

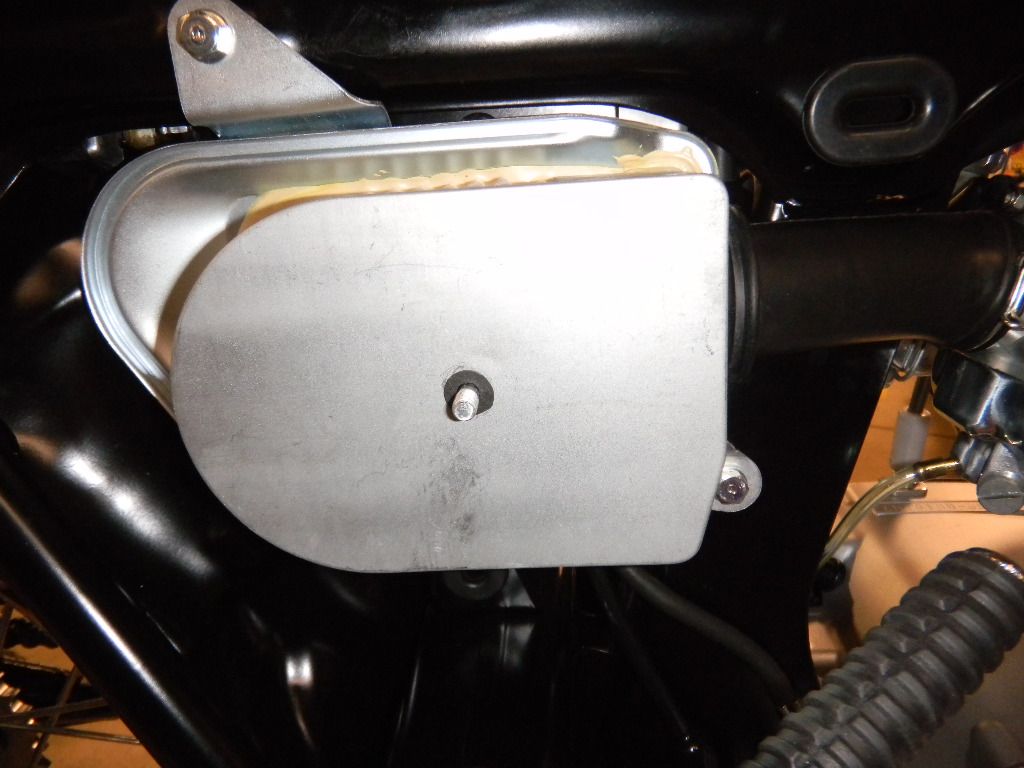

Right


Seal that needs to go on before the outer cover


Cover in place


Chain cover, side stand and foot pegs in place

[Easter]

Man, it is hard to believe we are not looking at a brand new bike!

[acemagneeto]

I agree. The attention to detail is unmatched in anything I've seen. It looks better than new. Amazing!

[Fred Camper]

Ray knows how to make them just a bit better than new.

[luludog]

Thanks guys. Waiting for painted parts to come back. Shouldn't be long after that and the engine will breath life again

[luludog]

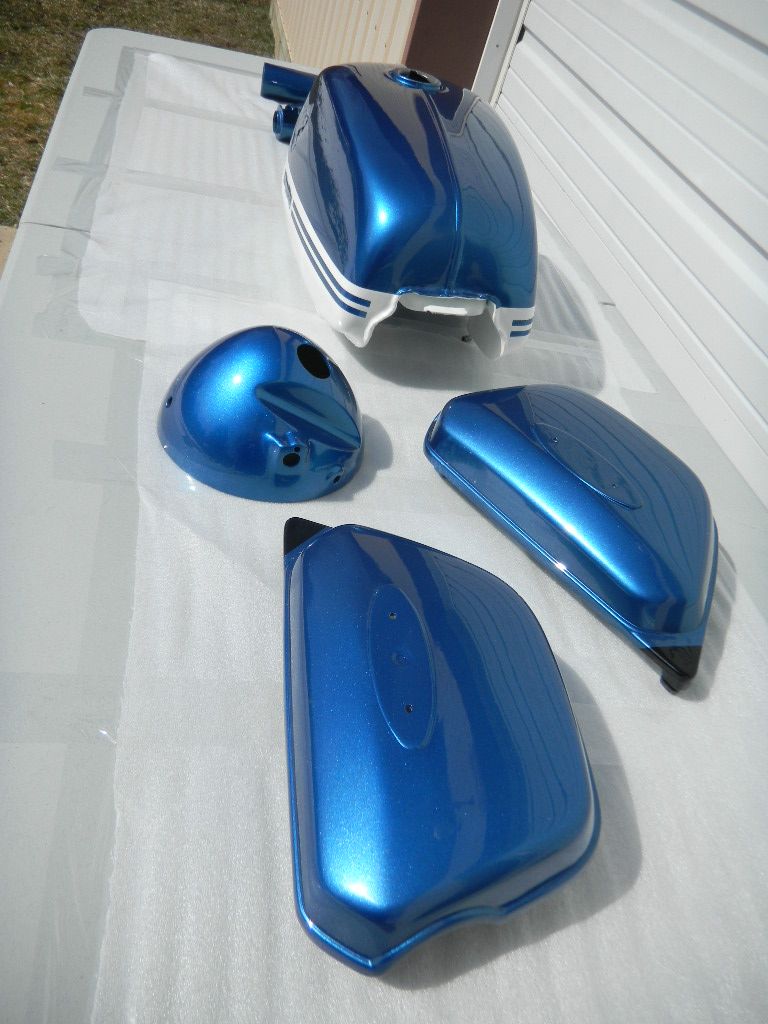

Painted parts are back, but the clear was shot last night, so they need to dry for a while. Sun is out, its about 42deg, out they went...

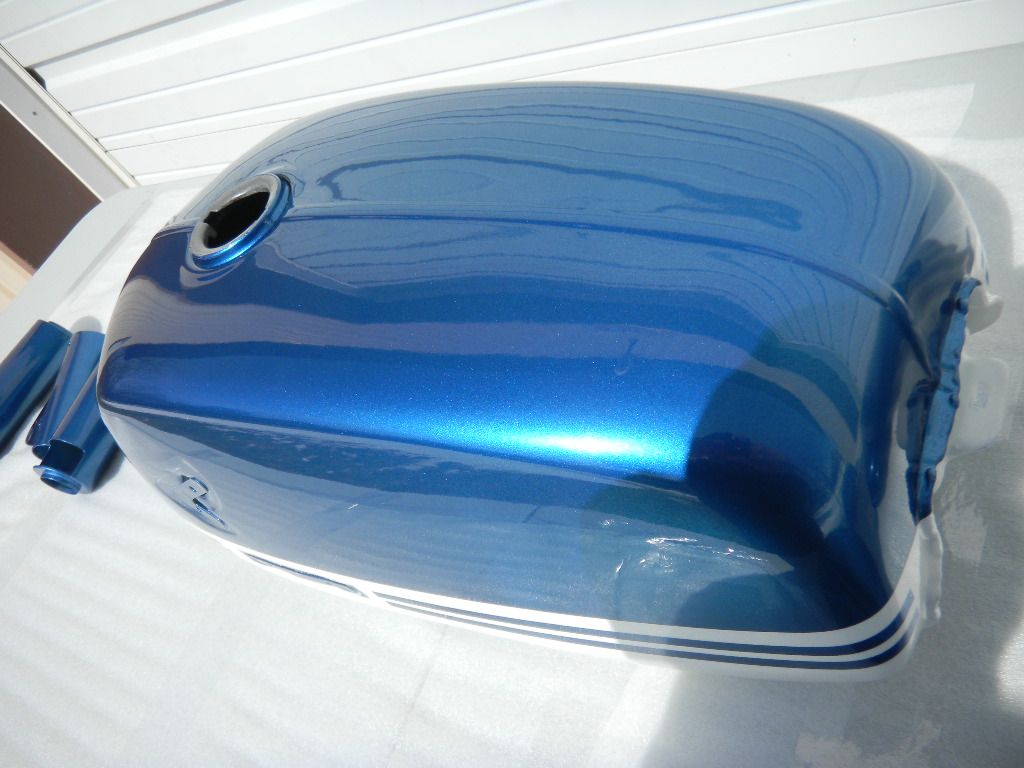

Kept the original color the bike came with. I really like it. From my research; Crystal Blue Metallic was only offered in the 1971 CB175K5.
Will get back on the bike in about a week. Hopefully finish it early April

Here's a few pics

[Fred Camper]

How could anyone not love that color combo, it is classic and I have no idea why it did not get used for at least 3 years.

[CFD132]

I can not believe I had not seen this until tonight! I must have been under a rock. Beautiful work on a great bike! WOW! Ok, this makes me want to pack my mess up and head north... Is there a waiting list?

I can't wait to see it completed!

[luludog]

Don't come up north... we just got 4" of snow and it looks like it won't get over 23deg tomorrow

As far as taking on projects for others: the '66 HD FLH was the last one (finally decided to take my retirement seriously).
----------------------------------
more updates

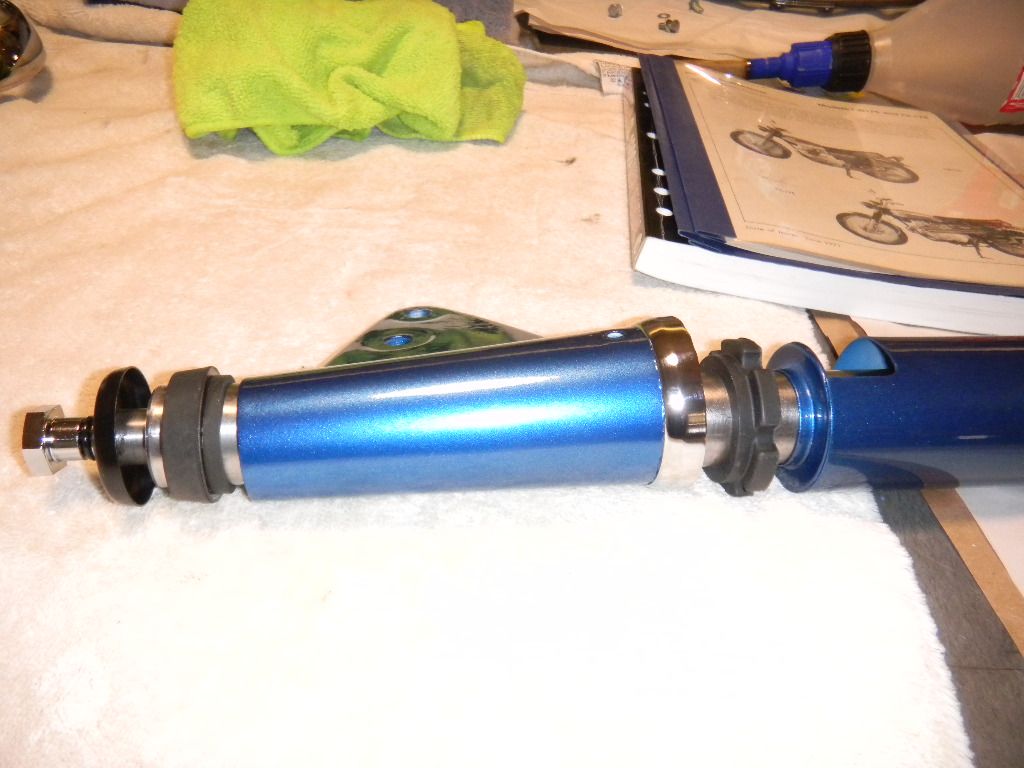

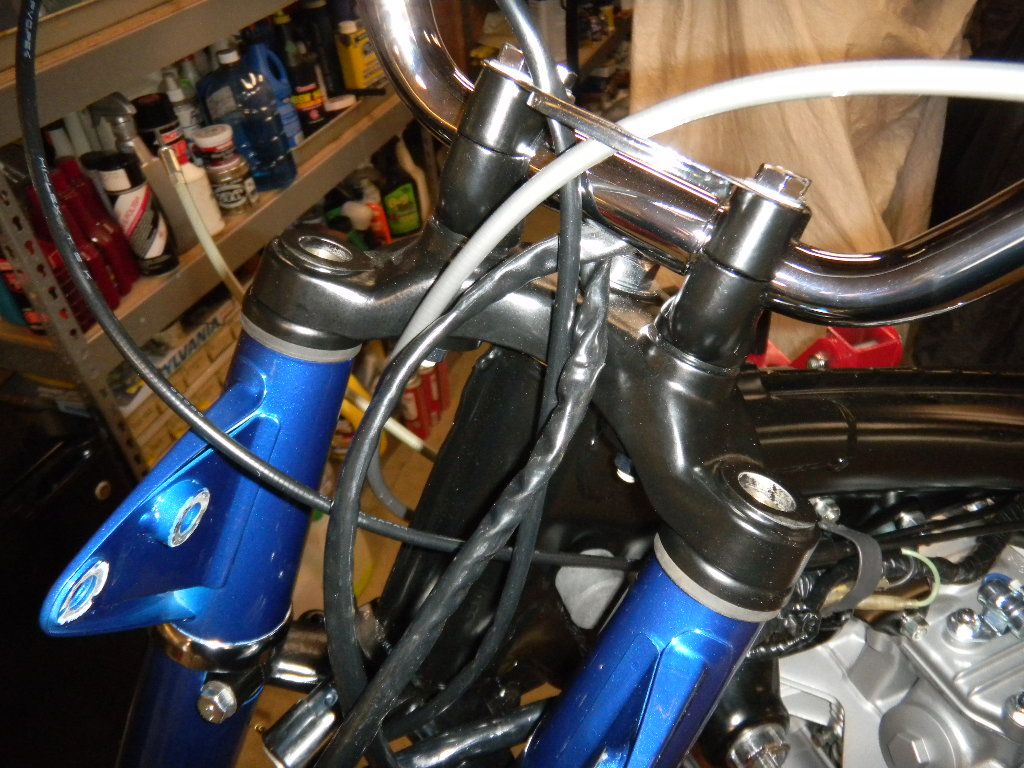

Front end. Pic of parts and how they go together

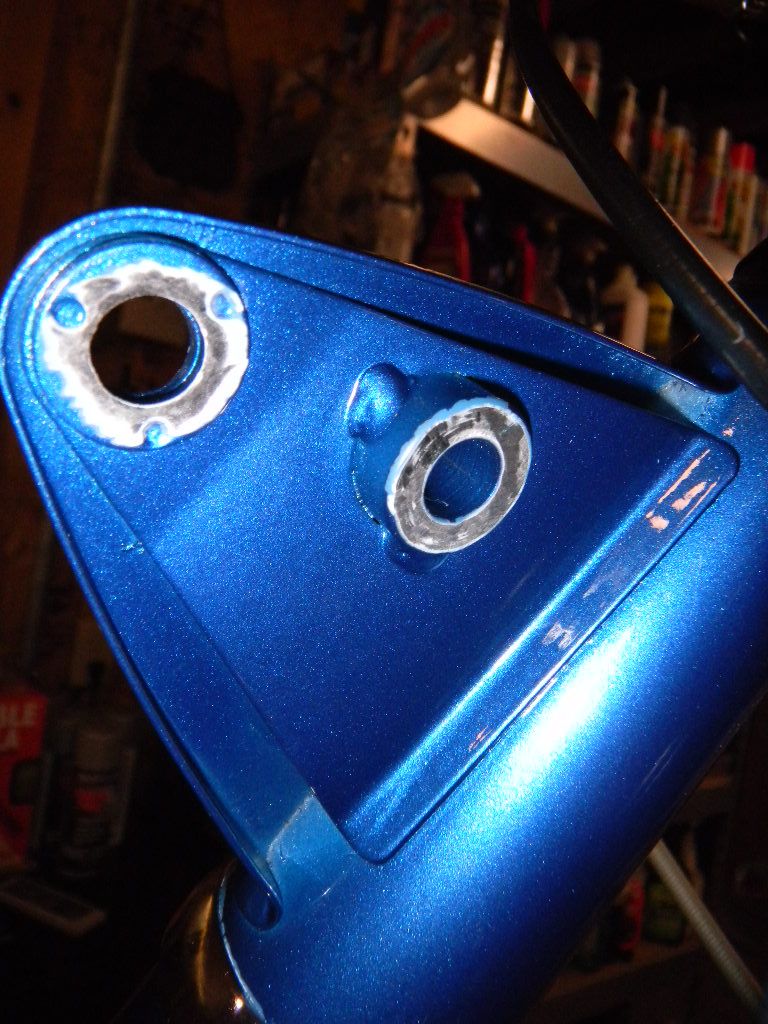

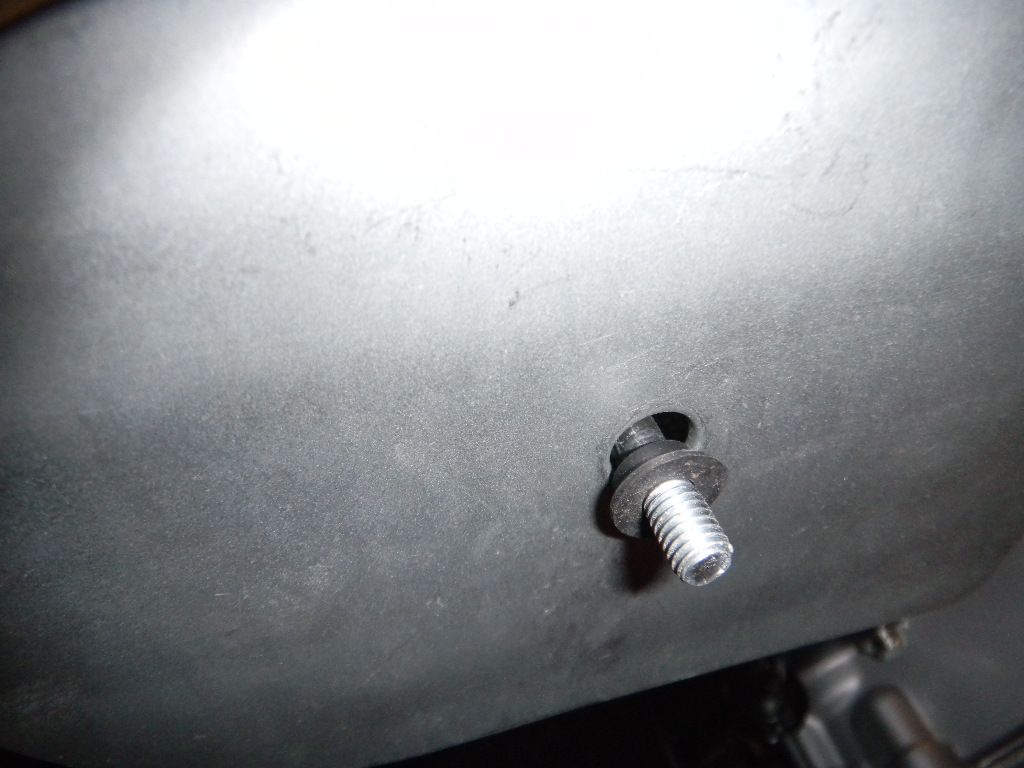

Sanded off the paint where the turn signal and headlight case attach


Double checked to make sure I had the left fork. Its the one that has the 6mm and 8mm threads (the right has two 6mm)


I left the top of the triple tree loose while installing the forks. Held them in place with the lower tree clamps.


Time to fill the forks. I'm using a 20w oil. The syringe holds 2oz. Each fork will take 4.8oz




Screwed in the fork cap screws w/ new o-rings (just loose for now)


Now I loosened the two lower tree bolts


Tightened the two fork cap screws and then torqued the top triple tree nut (60ftlbs)

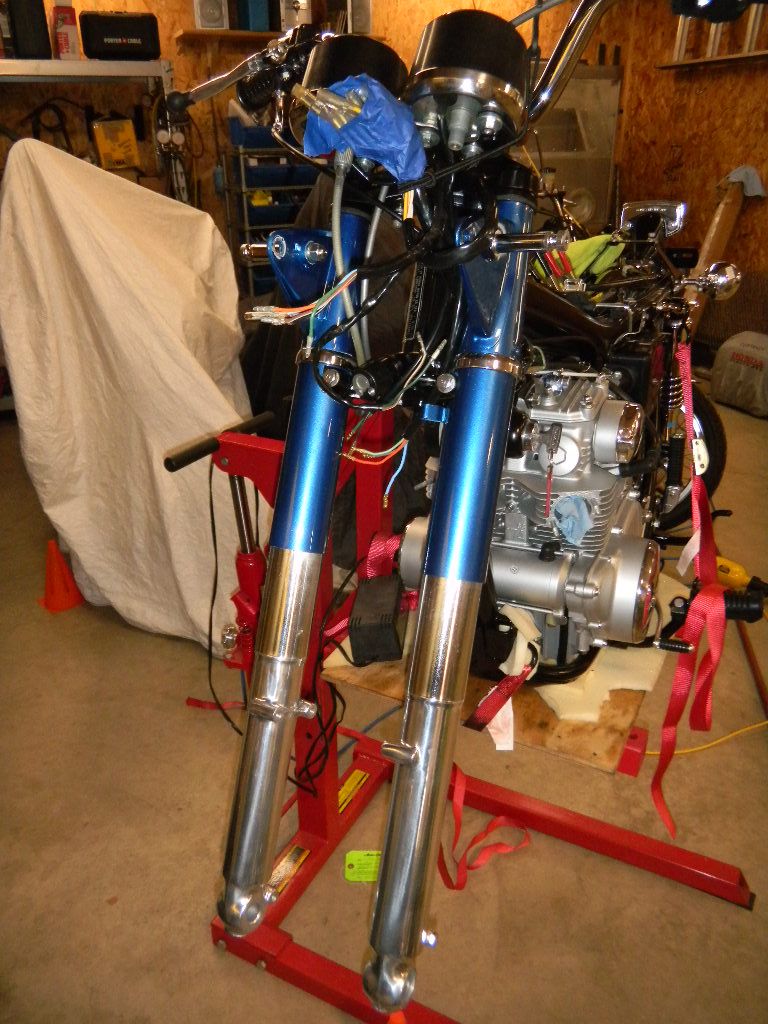

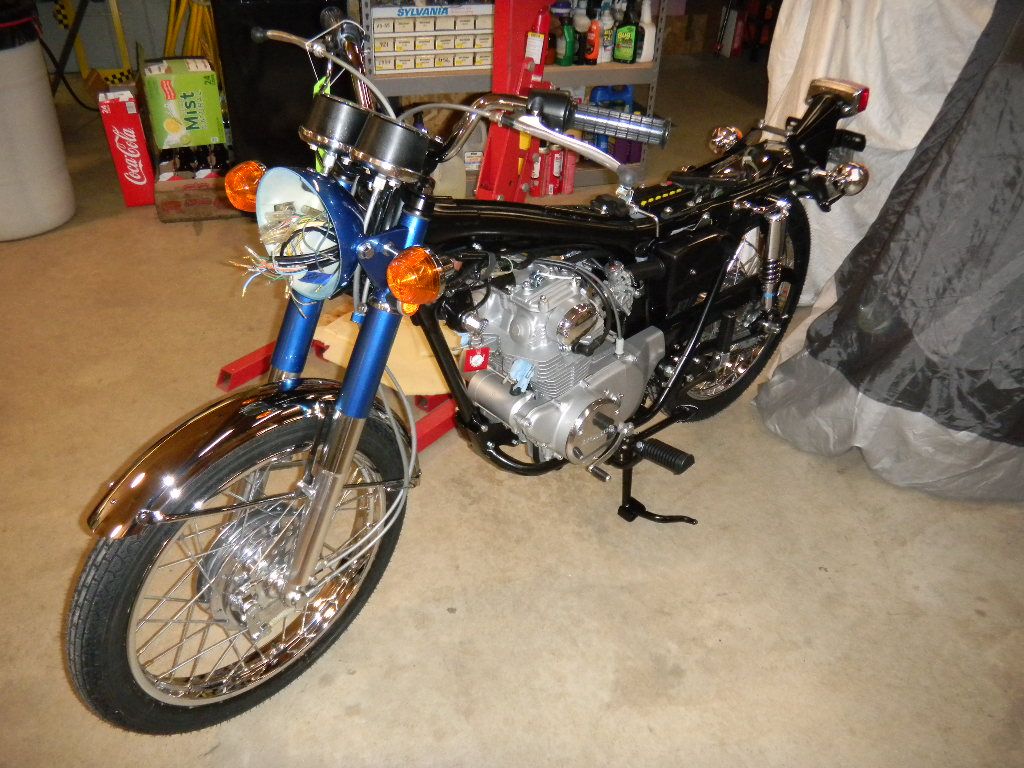

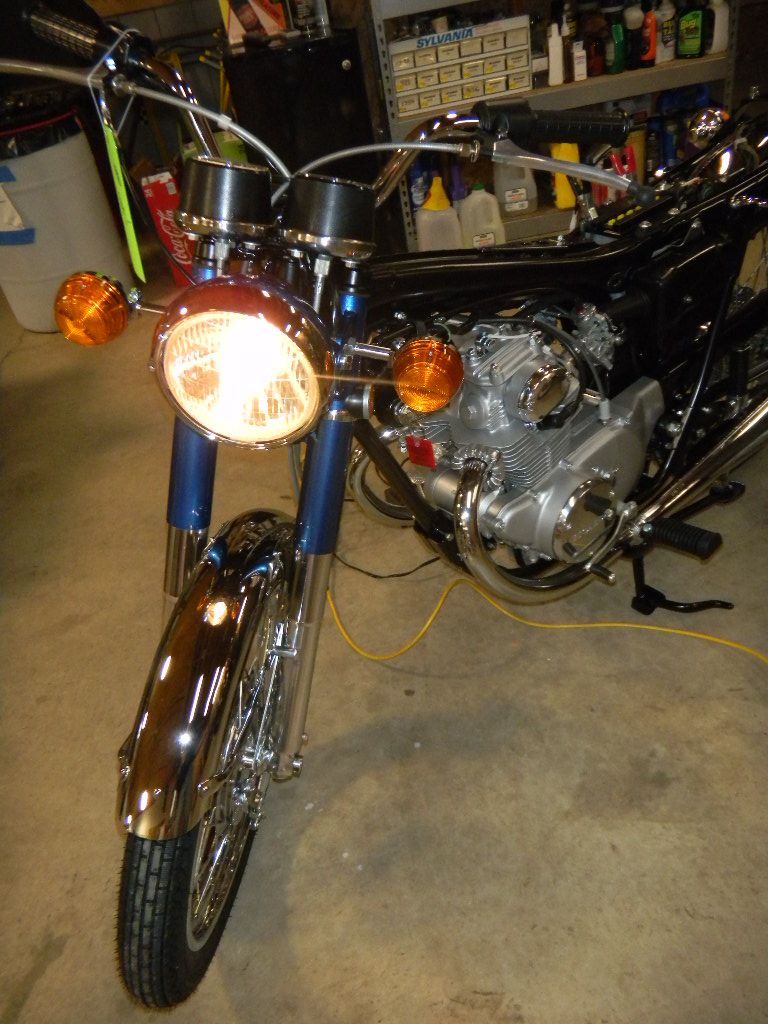

Starting to take shape :D


Fender was next. Brake strut had to be installed too. Detail shot to note the spacer, lock washer/keeper & bolt




Front axle detail


Front wheel in place

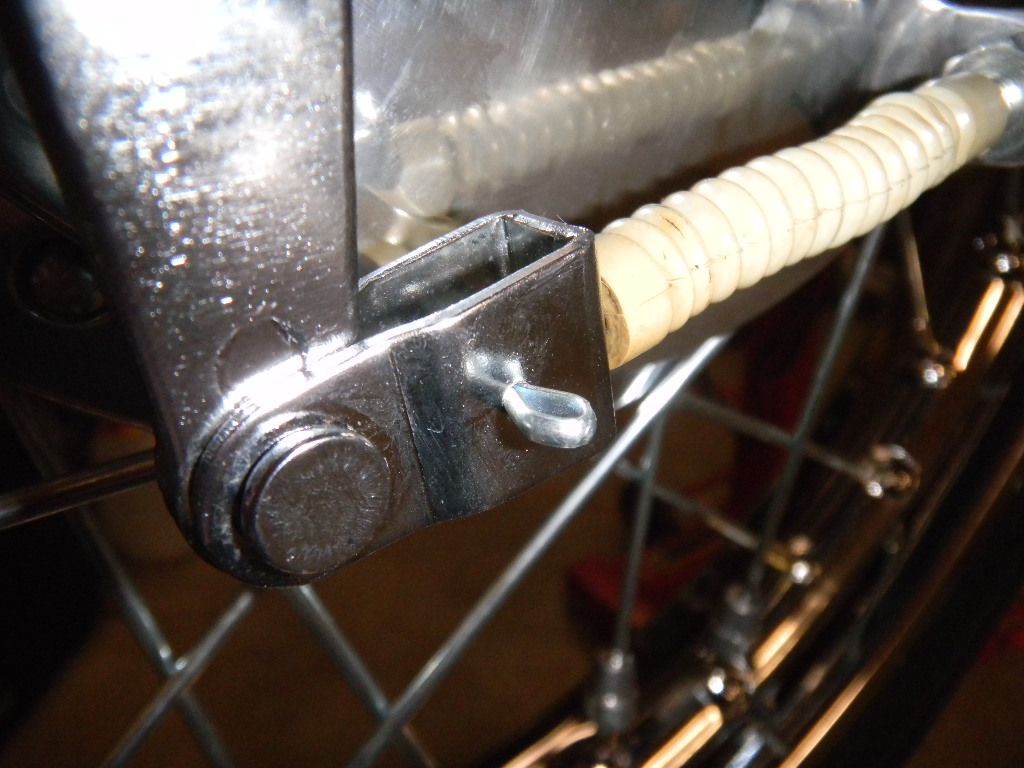

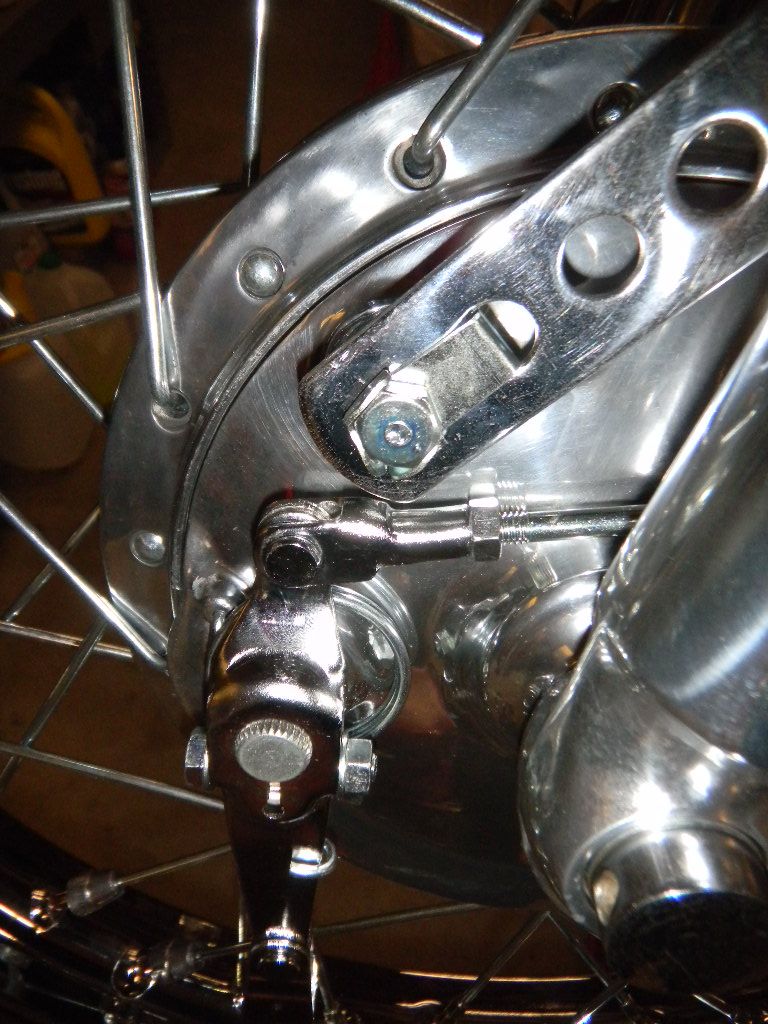

Speedo cable & brake cable installed. Here's a shot of the cotter pin that assures the cable won't come out.


Axle nut torqued, cotter pin installed


Misc

[Easter]

beautiful!

[Bugdaddy66]

Look at those wheels! I need sunglasses just to look at pictures.

[wingrider]

Great job! It'll look better than new!

[luludog]

Thanks guys! I'm in the final stages
--------------------------------------------
more updates

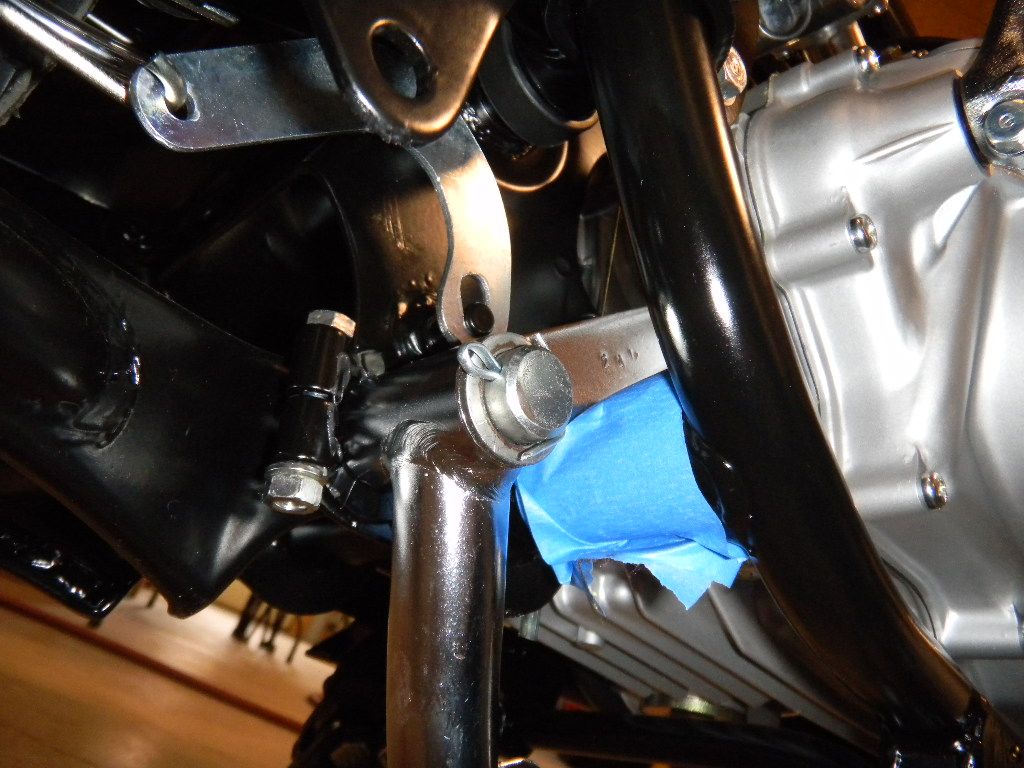

Installed the brake pedal. Had to loosen the pinch bolts for the center stand to push the rod in a litttle


Brake pedal partially on with lithium-moly grease


Washer & cotter pin in place


Larger spring is the brake return, smaller one actuates the brake switch

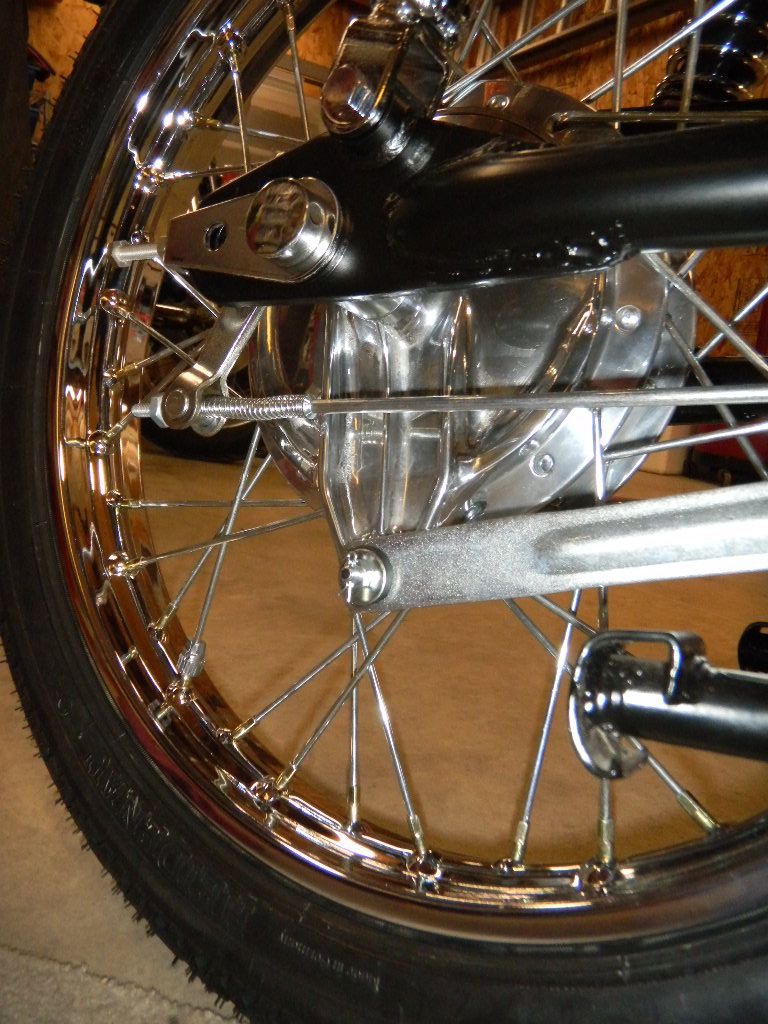

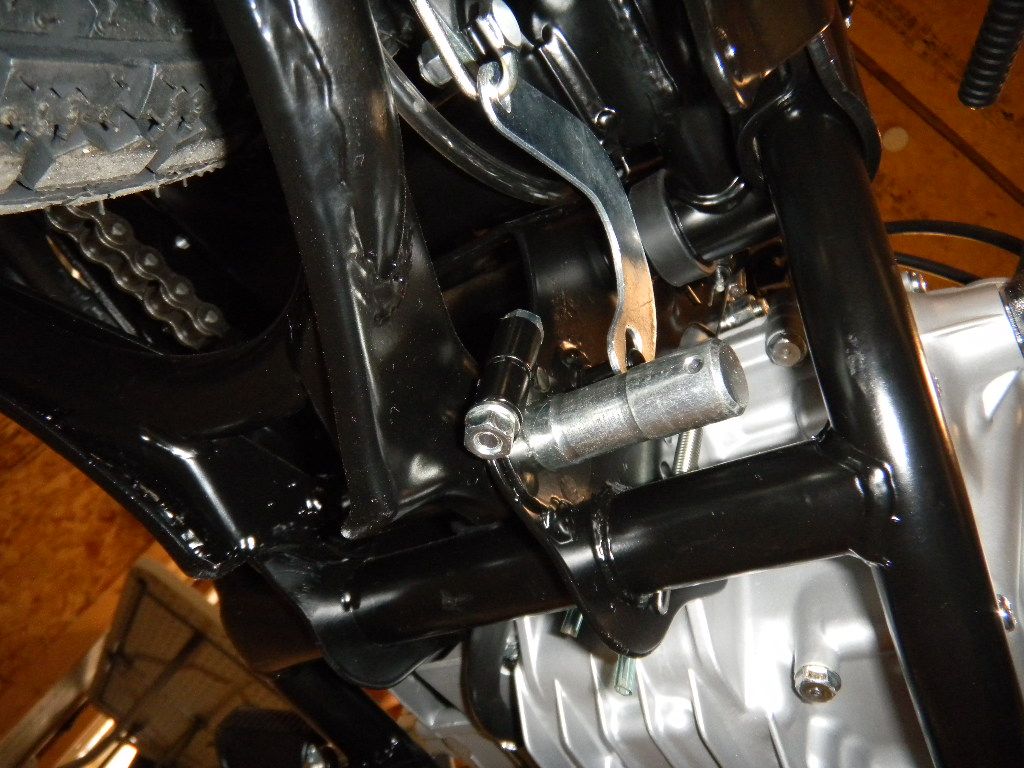

Brake rod installed & adjusted

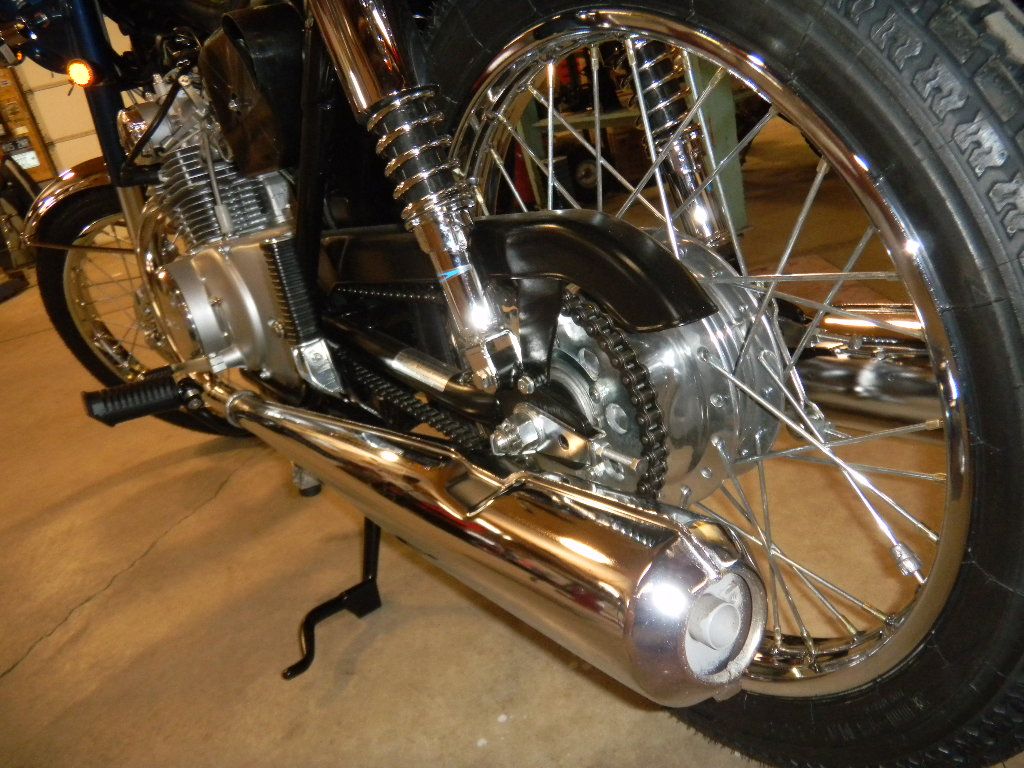

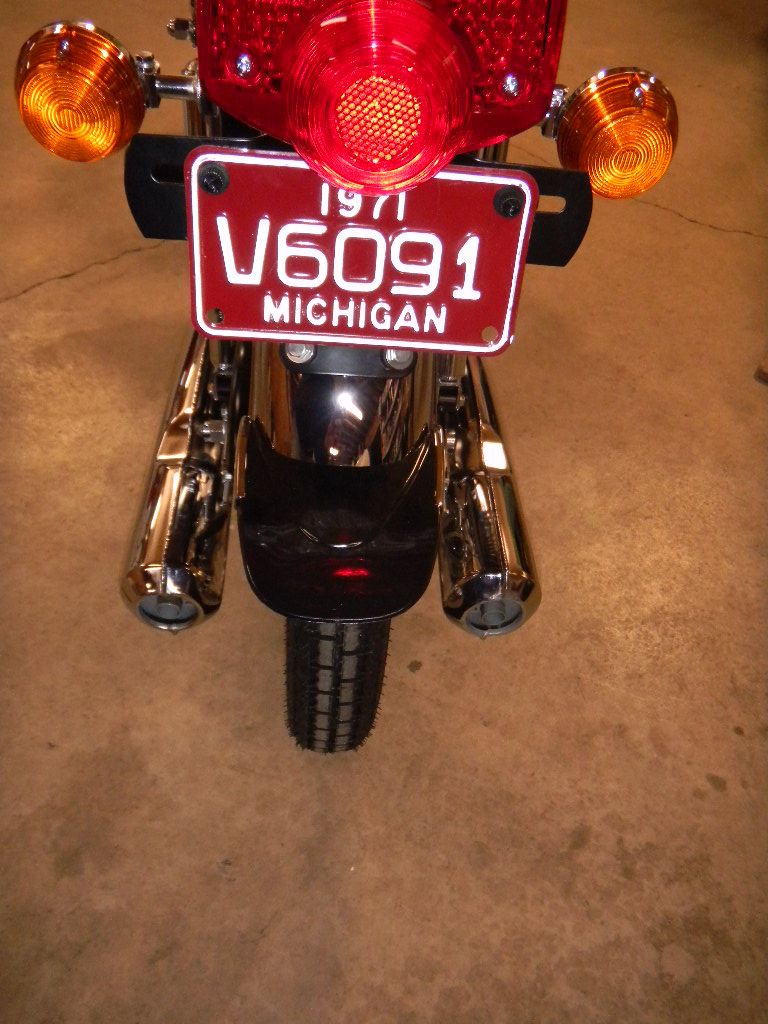

Mufflers... I didn't get a shot of the individual parts (copper gasket, collars & finned joint). The copper gasket went in first, followed by the muffler assembly (one piece, OEM #HM338), then the collars and finally the finned joint - held on with two 6mm nuts.

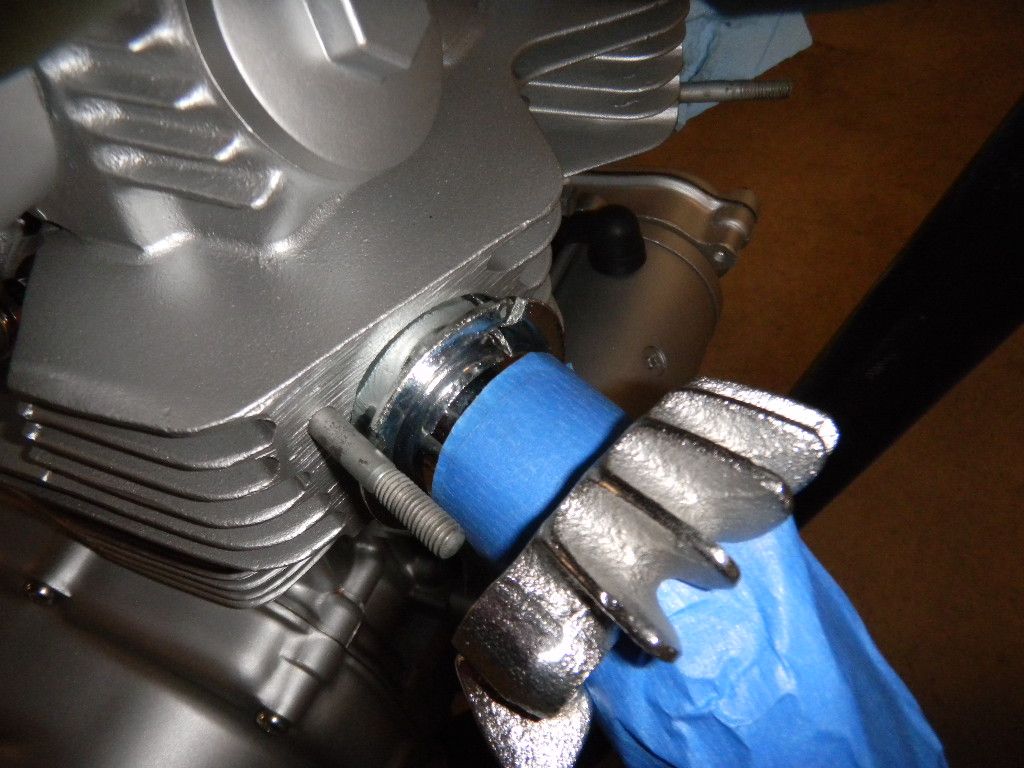

Used painters tape to keep from scratching the pipe


Attaches in the rear with the bracket where the passenger pegs are


Other side

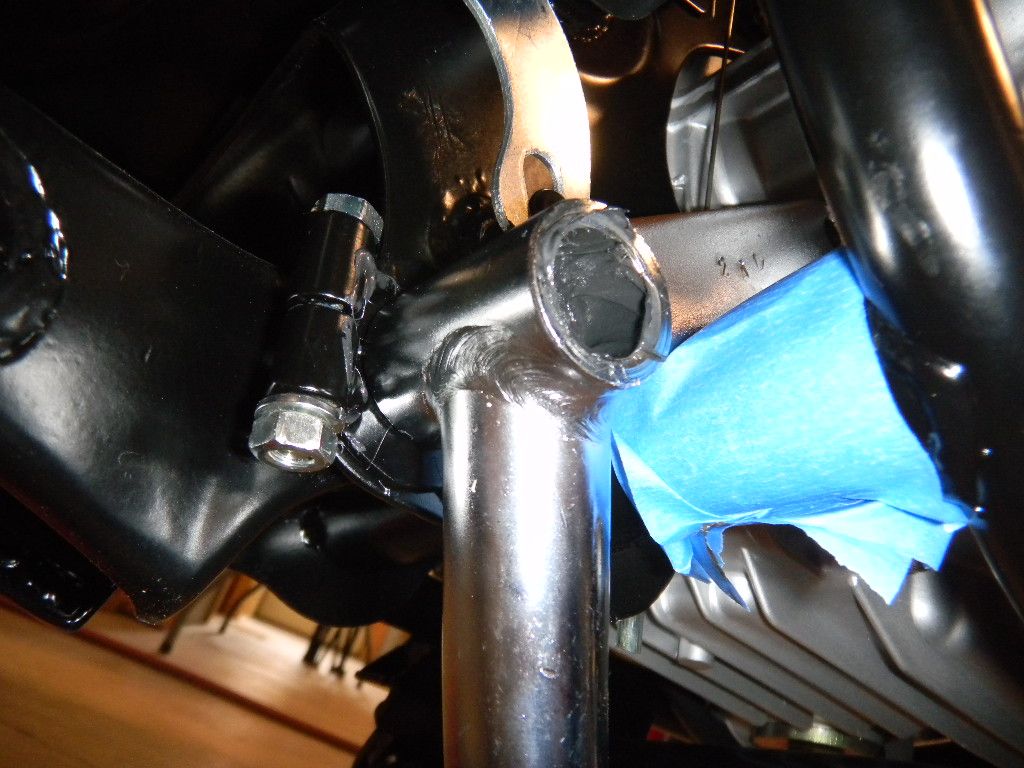

The kick stand wasn't fitting right. It was the right length, but it looks like the pivot bracket might have been changed at some point. Ended up finding a correct bracket.

Here's the final assembly (before this the kick stand sat too far back and didn't hit the rubber stop)

[luludog]

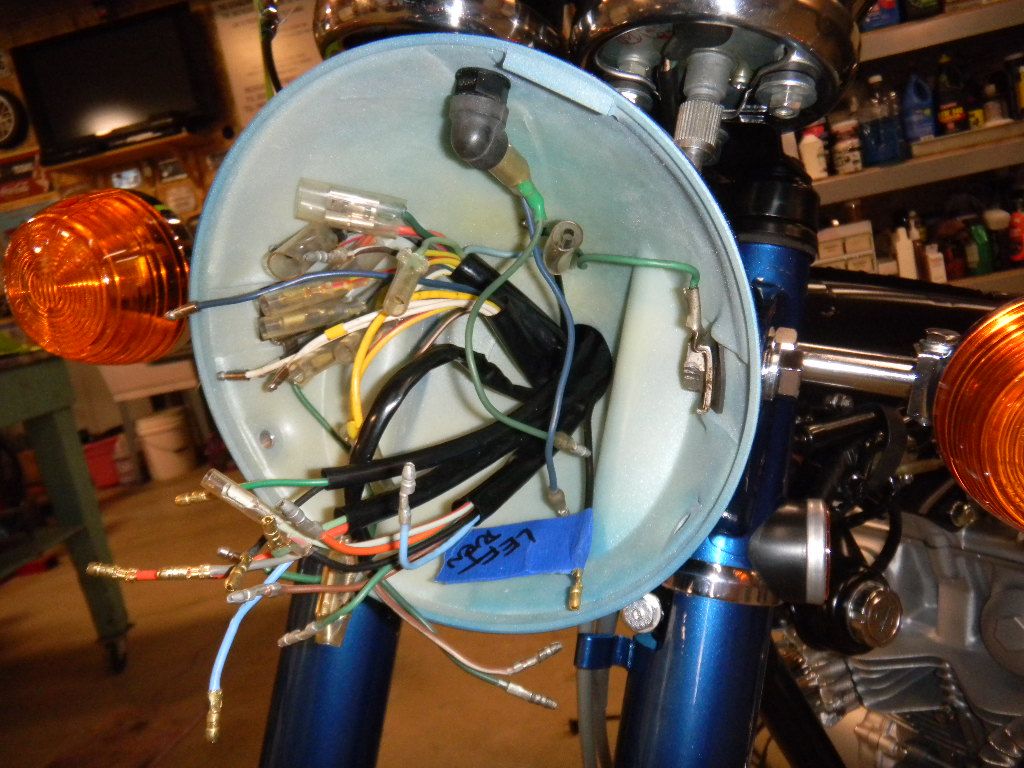

Finished up the wiring in the headlight. Was pretty straight forward, just connected similar color wires.

Before


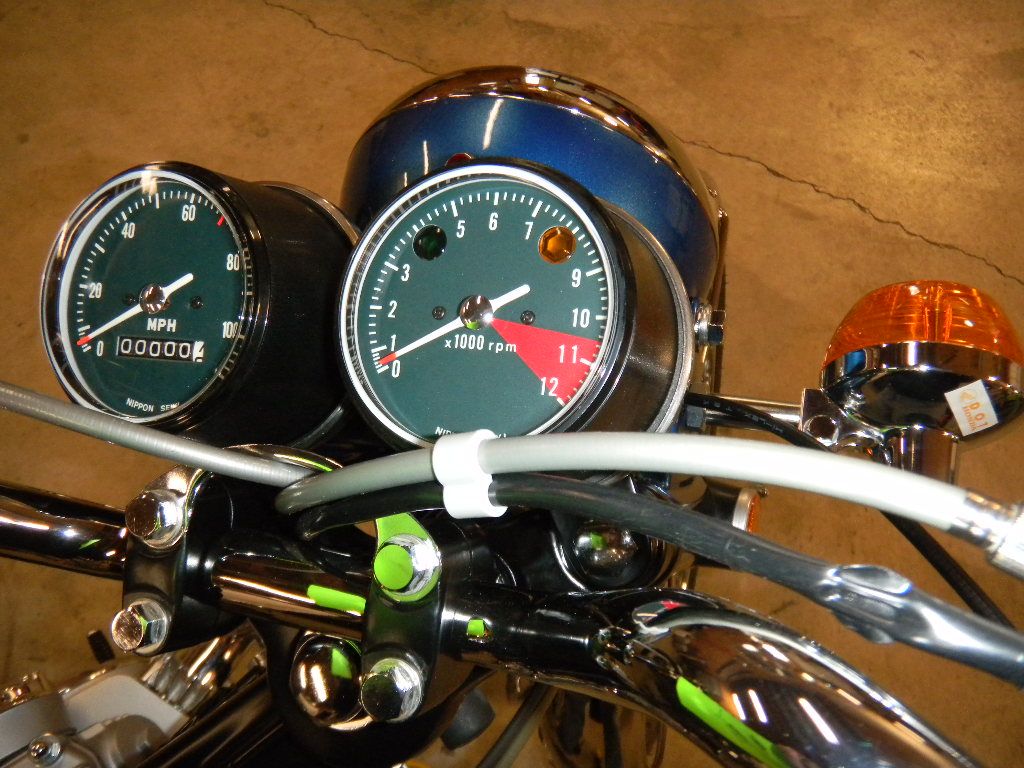

After






Switches & lights checked out good.

Added oil, grounded the coil, pulled the spark plugs & cranked the engine until I saw oil.


Hope to fire the engine early next week.
