The NGW Project Bike. Carburetor rebuild

Post #1 by octane » Tue Jun 27, 2006 3:00 pm

Just an appetizer:

Carbs have been taken apart.
Pics to follow later


I couldn't find the original picture for this so I put this one in it's place! WF


GoldWing Carbs.jpg




...you sure you wonna' go there?
You do not have the required permissions to view the files attached to this post.
Da' Supercharged Bulldog


"A designer knows he has achieved perfection
not when there is nothing left to add
but when there is nothing left to take away"

Antoine de Saint-Exupery

User avatar
thedutchman1975
Chrome Member
Chrome Member
Posts: 143
Joined: Sat Jun 24, 2006 1:31 pm
Location: New Albany In
Contact:

Post #2 by thedutchman1975 » Tue Jun 27, 2006 3:50 pm

uhhhhhhhhhhh i would be afraid to. But its a nice puzzle you have there. If i would do it i probably have spare parts left over.... You know the ones that are thrown in the corner in the "I do not need these parts pile" lol
Proud owner of a 1200
and 1500 GW. And my latest addition thats gonna be stripped down a 1981 1100 GW

bandido
Zinc Member
Zinc Member
Posts: 42
Joined: Sun Jun 04, 2006 5:49 am
Location: Barcelona-Spain

Post #3 by bandido » Thu Jul 27, 2006 2:27 pm

Hi Octane,
I've done the same in my "little twin" Kawa, but I know this was just 1/2 of the work... ;) For now, the carbs on my GL works extremely soft, so I expect no to dissasembly them for a loooong time..
Cheers
Rubber on the road & tight lines.
My gallery:
http://www.nakedgoldwings.com/gallery/bandido
'75 GOLDWING GL 1000
'76 KZ400 D3

User avatar
mmstingray
Titanium Member
Titanium Member
Posts: 323
Joined: Tue Jul 12, 2005 12:43 pm
Location: Taunton MA
Contact:

Post #4 by mmstingray » Thu Jul 27, 2006 2:51 pm

Off in the distance, I can hear Randakk saying "one at a time! One at a time!" ;)

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #5 by octane » Thu Jul 27, 2006 4:22 pm

mmstingray wrote:Off in the distance, I can hear Randakk saying "one at a time! One at a time!" ;)

...er.. ?....I thought he ment one set at the time.-)

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #6 by octane » Thu Jul 27, 2006 4:24 pm

...reminds me; now that the picture gallery is up and running;
I gotta get them photos posted.

mtbwana
Lead Member
Lead Member
Posts: 7
Joined: Mon Jul 17, 2006 6:37 am
Location: Shelley, Idaho

Post #7 by mtbwana » Wed Aug 02, 2006 5:16 am

Actually, it looks like you have impeccable "shop practices". I like the corrugated trays and the little plastic bins.

Now just don't trip and turn over the workbench. :shock: OR, my personal favorite, leave the project for a week, and then have to struggle to remember all the sequence in reverse.
1984 Aspencade

bandido
Zinc Member
Zinc Member
Posts: 42
Joined: Sun Jun 04, 2006 5:49 am
Location: Barcelona-Spain

Post #8 by bandido » Wed Aug 02, 2006 6:19 am

Hi, after a look to your carbs album, I've decided to rebuild mines when I'm getting older or in pension!! It's such a lot of work but must be funny and you must feel proud of yourself if all works fine after that mess :-D
BTW, thanks for teaching us...

Rubber on the road & tight lines.

My gallery:

http://www.nakedgoldwings.com/gallery/bandido

'75 GOLDWING GL 1000

'76 KZ400 D3

User avatar
pasvorto
Zinc Member
Zinc Member
Posts: 54
Joined: Wed Jul 19, 2006 11:25 am
Location: Winona, MN (USA)

Post #9 by pasvorto » Fri Aug 11, 2006 9:04 am

Will these apply to the carbs on an 80 GL1100?
=========
1980 GL1100
1978 Corvette
1964 Ford Galaxie 500 XL
1976 Columbia 26 sailboat

http://www.hbci.com/~mwalter/

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #10 by octane » Mon Aug 14, 2006 7:37 am

pasvorto wrote:Will these apply to the carbs on an 80 GL1100?

Howdy
If you mean whether this procedure will apply to the later carbs,
then I have to say that I don't really know about 1100 carbs, except
that they have an acceleration pump and some other differences
but I do think that you can use this thread as a guideline and then you MUST check the 1100 manual for differences.

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #11 by octane » Mon Aug 14, 2006 7:47 am

Hi folks
Sorry to post these pics so late after promising to post them!
Most of them have been on my´PC for quite some time.
Well, a vacation got in the way and then the picture gallery function
of the Forum went south, and then work got in the way and blah blah..





PLEASE NOTE:
these are 755 carbs.

PLEASE NOTE:
You're a fool if you don't read Randakks website before diving into a carb rebuild.

This rebuild is based on his
GL1000 Master Carb Overhaul Kit


OK here we go:

First: detach the carbs from the bike.
I'm not going into that here, as it is just a matter of following your
manual. One thing though; I do believe they fail to mention that
removing the air cut valve assembly, make the process a lot easier.

Her they are


'normal' amount of filth and dirt and what have you

Same thing at the back (and a sneak preview of the intestines)



generally a lot of signs of neglect and heavy handed use of silicone liquid gasket or whatever it is




more silicone AND epoxy glue(!). What is going on here?

Last edited by octane on Mon Aug 14, 2006 11:43 am, edited 3 times in total.

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #12 by octane » Mon Aug 14, 2006 7:53 am

..more....er....stuff, inside



obviously one or more carbs have been leaking for a very long time:


witch is confirmed by the build up on the engine block




Time to dismantle this thing.
(At that point I had the vacuum chambers off. No need to do that)

Remove the linkages (or rather; as little as possible of it)
to prepare for splitting the plenum/air chamber


User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #13 by octane » Mon Aug 14, 2006 8:00 am

through out the process;
take a LOT of pictures.
You will NOT remember what this looked like
next Sunday when you get around to do the assembly of the bugger.-)



try keeping the parts in 'batches'.


..theses are some of the screws that hold together the two haves of the plenum/air chamber


mine took a LOT of struggling to get off


but eventually the gave up the fight against my immense amount of raw muscle power....ho ho
CRAAAACK!

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #14 by octane » Mon Aug 14, 2006 8:27 am

...carefull you don't loose these litttle ...er....pins? dowels?



..remove the 4 slow air hoses (between carbs and plenum)
from plenum
and remove bolts inside plenum that attaches the carbs.



carefully remove the two-carb assembly
(you have NOT removed the crome thingie that holds together the two crbs)

User avatar
octane
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3763
Joined: Sat Jun 11, 2005 3:24 pm
Location: Denmark

Post #15 by octane » Mon Aug 14, 2006 8:40 am

...careful, you don't want to loose this little link
that ....er...links the two carbs.
(it will stay put, but if you go into further dismantling
it's easily lost)


these (two for each carb) are loose.
Remove.
(you'll not find those on the very earliest GL1000)




remove vacuum chamber and pistons

SO THIS IS AS FAR AS YOU'D WONNA DISMANTLE IF YOU GO
THE "RANDAKK" WAY!
That is to say; don't split them up into individual carbs.
keep them together two and two.

For various reasons I'm going all the way in this thread.
You don't need to!
...and PHEW it can be a 'bit' confusing if you haven't done it before:
I counted 472 (fourhundredseventytwo) parts here and then everything became a tad blurry.-)
Image not hosted on NGW WF




Now's the time to make a system so you keep things separated and
in 'sets'.



As a minimum for each carb;
Carb body/vacuum chambers/pistons are to be kept as an assembly

I scratch numbers (1 for carb 1 parts and so on) into all the above mentioned parts

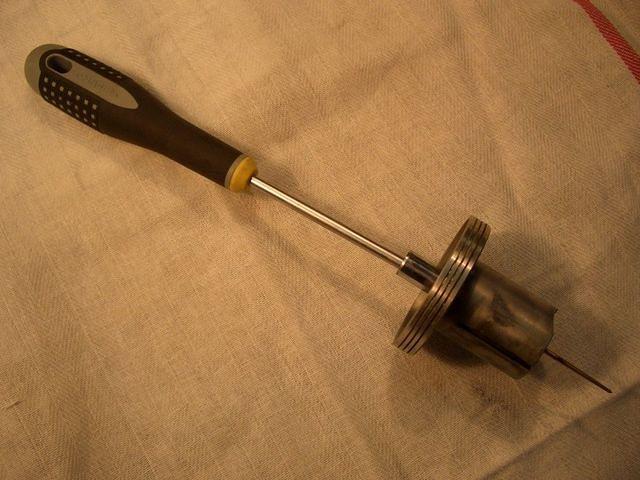

Remove needles from pistons.
There's a screw down there:
Last edited by octane on Mon Aug 14, 2006 3:17 pm, edited 3 times in total.
